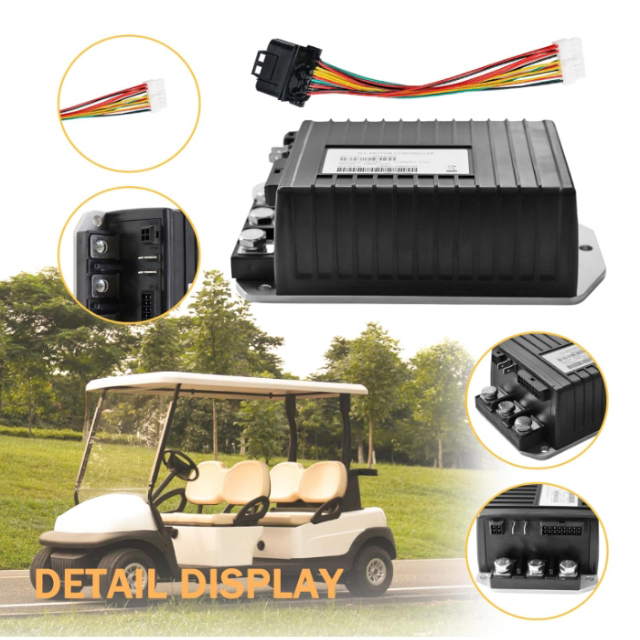

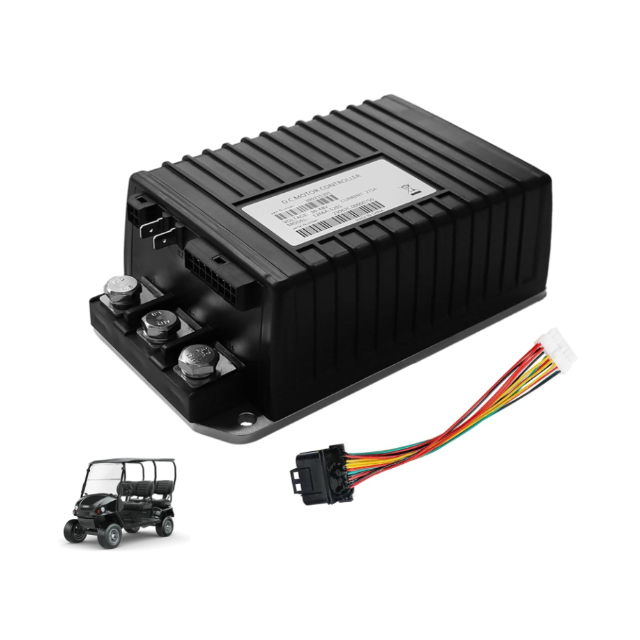

DC Motor Controller for Golf Cart Club Car 24V 36V 48V

This controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles.

These programmable controllers are simple to install, efficient, and cost effective.

Typical applications include golf carts and small utility vehicles.

Offers smooth, silent, cost effective control of motor speed and torque.

Product Name DC Motor Controller
Material Aluminum Alloy
Function Automatic Control, Protection
Compatible Make Golf Carts YAMAHA Club Car Ezgo Lvtong

Product Information

Feature

Higher performance form, fit and functional replacements for earlier Curtis model DC controllers.
Advanced pulse width modulation techniques produce low motor harmonics, low torque ripple and minimized heating losses, resulting in high efficiency.
Field upgradeable software.
Fail-safe power component design, short circuit protection on all output drivers.
Insulated metal substrate power base provides superior heat transfer for increased reliability.
User programmable to match application requirements and performance.
Upload and download parameter settings, upgrade firmware and real-time variables.

Specifications

Model No.	1266A-5201	Condition	New

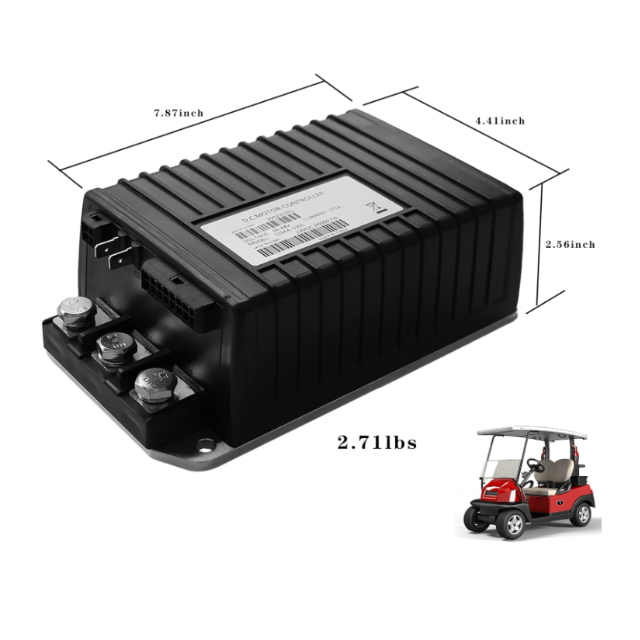

Specification	L200W115H65mm	Voltage	36-48V
Function	Automatic Control, Protection	Color	Black
Certification	ISO9001	Signal	Continuous
Weight	1.24kgs	Customized	customzied
Temperature	-40°-50°	Warranty	5 years

Why Choose our motor controller?

• High efficiency,silent operation, cost, heat-sinking requirements,motor and battery losses reduced.
• Low-end torque,range and battery life maximized.
• Programmable, variable, or fixed plug braking modes.
• It has brake control and variable drive speed,efficient and noise free operation, as well as temperature protection.

Short circuit protection Functions

-Programmable high pedel disable function prevents controller operation if throttle is applied before key is turned on.
-Contactor fault detection: Controller shuts down safely it the main contactor opens.
-Contactor protection functions minimize high currentarcing to prevent contact pitting and thus prevent contactor weld failures.
-Under voltage cutback and shutdown functions protect against low battery voltage.including low voltage caused by external loads.
